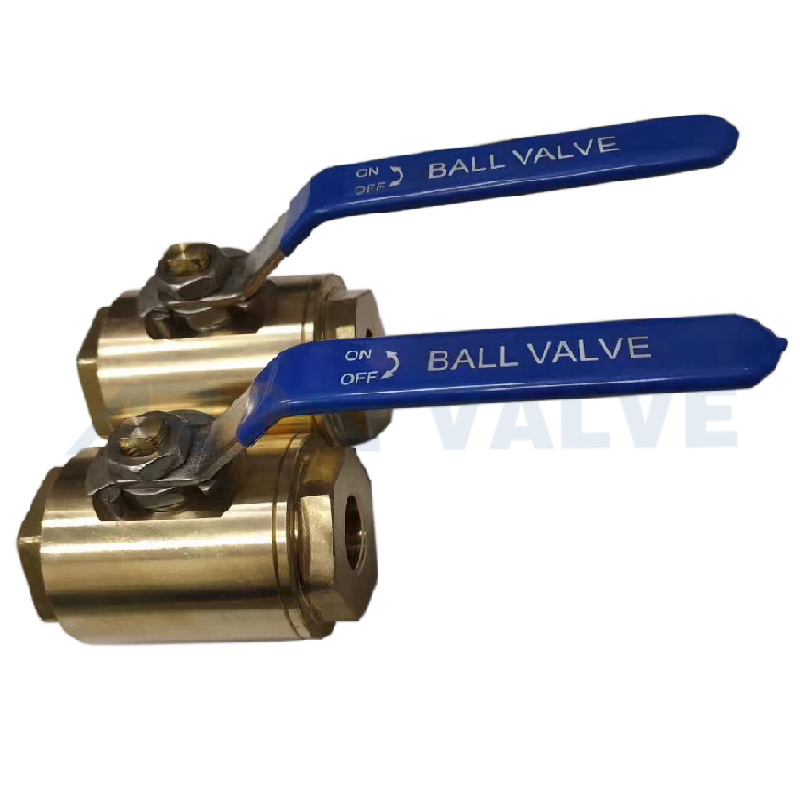

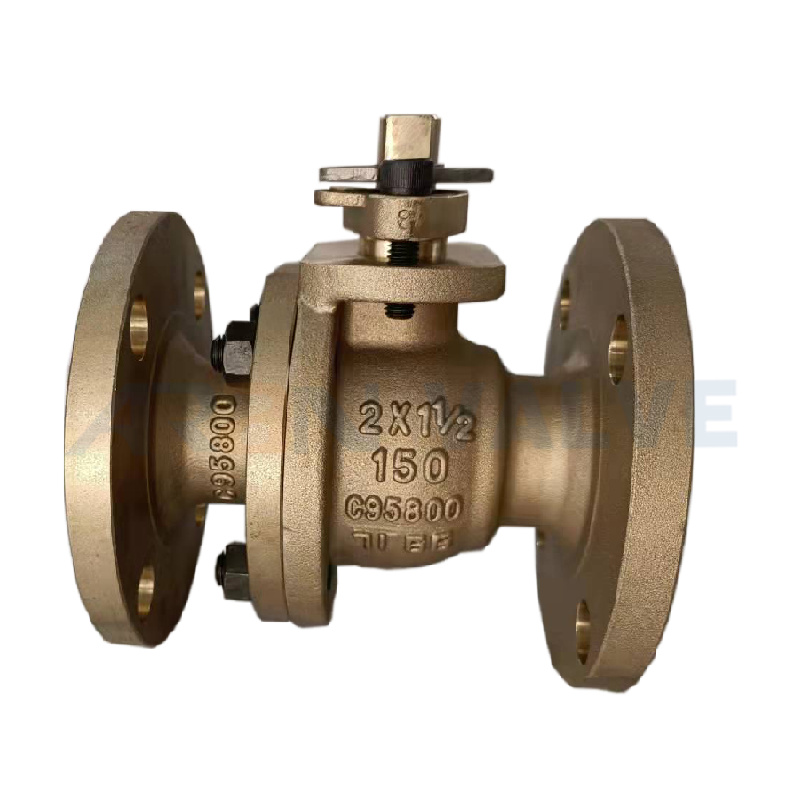

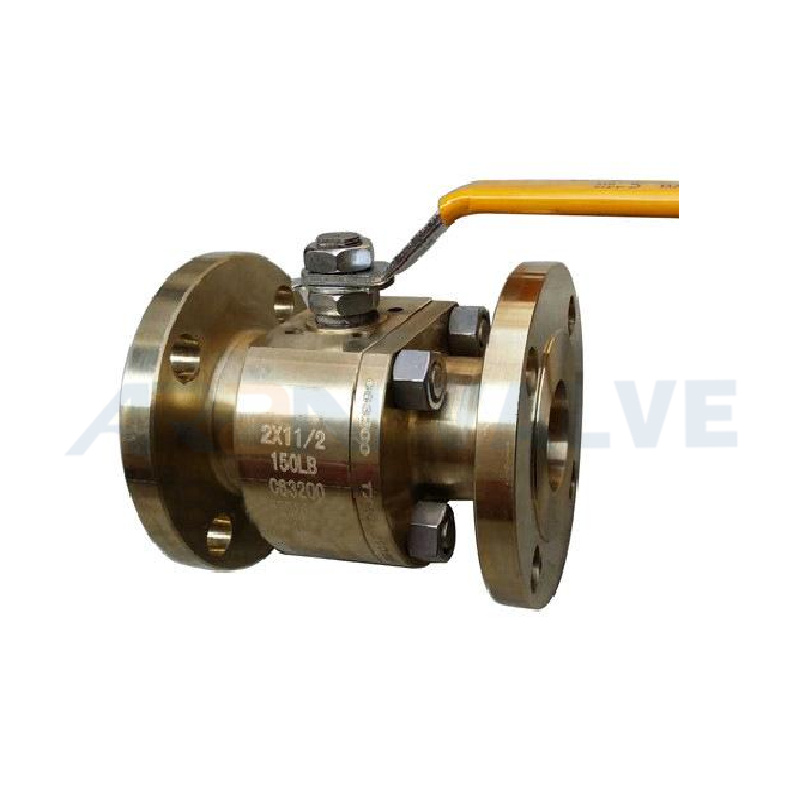

ARAN delivering worldwide ranges of of Nickel Aluminum Bronze ball valves. Nickel Aluminum Bronze valves available in both cast and forging product forms, the usual production material codes: ASTM B148 C95800, C95500. The size from 1/2”~24” and pressure 150LBS~600LBS.
● Nickel Aluminum Bronze BALL VALVE CAST STEEL 2PC BODY FLOATING BALL
● Nickel Aluminum Bronze BALL VALVE CAST STEEL 2PC BODY TRUNNION BALL
● Nickel Aluminum Bronze BALL VALVE FORGED STEEL 2PC BODY FLOATING BALL
● Nickel Aluminum Bronze BALL VALVE FORGED STEEL 3PC BODY TRUNNION BALL
● Nickel Aluminum Bronze BALL VALVE 3WAY TYPE
● Nickel Aluminum Bronze BALL VALVE CROGNIEC TYPE
Nickel Aluminum Bronze also abbreviated NAB, NiAlBr.
Nickel Aluminum Bronze (NAB) is important demanding material specially in seawater applications for their super corrosion resistance and wearing ,excellent physical, mechanical, anti-corrosive, properties.
| Production Range | Multi- port Ball Valves |
| Material type | Forged steel or Cast steel |
| Material code | WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L |
| Seat type | Soft Seated PTFE/RPTFE/DEVLON/NYLON/PEEKMetal seated Hard coating material like CRC/TCC/STL6/Ni60/STL |
| Size | NPS 2”~24” (50mm~600mm) |
| Pressure | ASME Class150~2500LBS (PN16~PN420) |
| Operation | Manual, Worm Gearbox, Pneumatic actuator, Electric actuator, Hydraulic-electric actuator |
| Working Medium | WOG |
| Working temp. | Max 350℃ |
| Production Standards | API/ANSI/ASME/EN/DIN/BS/GOST |
| Design& MFG code | API 608/API 6D/ISO17292/ ISO 14313/ASME B16.34/BS5351 |
| Face to Face | ASME B16.10,EN558 |
| End Connection | FLANGE RF/RTJ ASME B16.5/EN1092-1/GOST 33259 |
| Test & Inspection | API 598, API 6D, ISO5208/ISO 5208/EN12266/GOST 9544 |
| Basic design | |
| FIRE SAFE | API 607 |
| ANTI STATICS | API 608 |
| Stem feature | Anti blow out proof |
| Ball type | Top Entry |
| Bore type | Full bore |
| Bonnet Construction | Bolted bonnet or full welded bonnet |
| Optional customize | NACE MR0175, MR0103, ISO 15156 compliance |
| ISO 5211 MOUNTING PAD | |
| Limit Switch | |
| Lock device | |
| ESDV service suitability | |
| Non-destructive testing (NDT) to API 6D, ASME B16.34 | |
| Documents | Documents on delivery |
| EN 10204 3.1 MTR Material test report | |
| Pressure inspection report | |
| Visual and dimension control report | |
| Product warranty | |
| Valve operation manual | |
| Product of origin |
