V Port ball valve is also called Segmented ball valve which has the ball V notch type designed and realizes body sealing in V type, very precise and sharp in flow control and shut off medium. It is very good choice for medium like fiber slurry or solid particles.
V port ball valve features:
The valve ready ISO 5211 mounting pad for actuators like pneumatic, electric, worm gear etc.
The body is one piece design less body leaks compared with slip body.
The ball is specially V port designed has strong cutting effect and tight sealing performance on the medium.
and can adjust the flow characteristics of the medium in equal proportions.
The V port ball valve allows precisely control medium.
V port ball valve has the Equal Percentage Flow Characteristic.

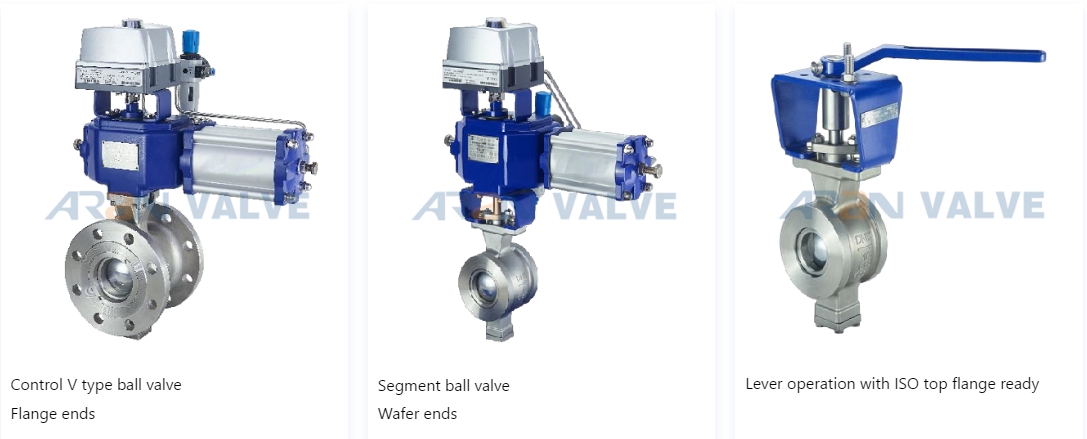

Different types of V port ball valve
| Production Range | V Port Segment Ball Valves |
| Material type | Carbon steel/Stainless steel/Alloy steel/Special alloys etc. |
| Material code | WCB, LCB, CF8, CF8M, CF3, CF3M, A105, LF2, F304, F316, F304L, F316L |
| Seat type | Soft Seat PTFE, RPTFE, DEVLON, PEEK Metal seated Hard coating material like CRC/TCC/STL6/Ni60/STL |
| Size | NPS 1”~12” (25mm~300mm) |
| Pressure | ASME Class150~600LBS (PN16~PN64) |
| Operation | Manual, Worm Gearbox, Pneumatic actuator, Electric actuator, Hydraulic-electric actuator |
| Working Medium | WOG |
| Working temp. | Max 350℃ |
| Production Standards | API/ANSI/ASME/EN/DIN/BS/GOST |
| Design& MFG code | API 608/API 6D/ISO17292/ ISO 14313/ASME B16.34/BS5351 |
| Face to Face | ASME B16.10, EN558 |
| End Connection | FLANGE RF/RTJ ASME B16.5/EN1092-1/GOST 33259 |
| Test & Inspection | API 598, API 6D, ISO5208/ISO 5208/EN12266/GOST 9544 |
| Basic design | |
| FIRE SAFE | API 607 |
| ANTI STATICS | API 608 |
| Stem feature | Anti blow out proof |
| Ball type | Side entry |
| Floating ball type | one way sealing |
| Trunnion ball type | one way sealing |
| Bore type | V port |
| Bonnet Construction | Integral one piece body |
| Optional customize | NACE MR0175, MR0103, ISO 15156 compliance |
| ISO 5211 MOUNTING PAD | |
| Limit Switch | |
| Lock device | |
| ESDV service suitability | |
| Documents | Document on delivery |
| EN 10204 3.1 MTR Material test report | |
| Pressure inspection report | |
| Visual and dimension control report | |
| Product warranty | |
| Valve operation manual | |
| Product of origin |
